MESIN STERILISASI / AUTOCLAVE

YG Series Pulsating Vacuum Sterilizer

Pulsating Vacuum Sterilizer with the features of PLC and HMI automatic program control, automatic temperature recording and printing, vacuum drying, etc. It is suitable for hospitals, pharmaceutical factories, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.

Structure & Capability & Characteristics :

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel).
  • National patent door interlock device.
  • National patent sealing technology – closed inflatable seal ring with compressed air.
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Independent temperature monitoring system.
  • The steam condenser is fitted in the exhaust/vacuum line to condense the steam before entering inside the vacuum pump.

SG Series Super Water Sterilizer

This series adopts cyclical water as sterilization heating carrier and carry out water-pouring sterilizing operation for articals. During the whole working course, superheated water operates in a relatively sealing cyclical system, which has series of advantages, high heat efficiency, good temperature evenness, stable temperature adjusting range, etc. Besides, this equipment also effectively prevents second pollution during working with anti-pressure protection device. It can be applied widely to high-and-low temperature sterilizing operation on liquid in glass bottles.  Ampoule bottles, plastic bottles, plastic packs, etc. in pharmaceutics. Meanwhile, it is also suitable for foodstuff industry to sterilize all kinds of sealing package, drink, cans.

AM Series Ampoule Leak Sterilizer

This series is a kind of high-performance and high-intelligence equipment for sterilizing, leak detecting and cleaning, which adopts colorful touching screen and PLC, applicable to treating of ampoule, oral medicine, small infusion bottle, etc. After sterilization, by means of vacuum or vacuum plus water, the detecting rate of waster is assured to be 100%. Finally washing treatment is carried out with pure water to ensure surface of bottle and uncontaminated.

Structure & Capability & Characteristics

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • National patent door interlock device.
  • National patent sealing technology – closed inflatable seal ring with compressed air.
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.

CG Series Pure Steam Sterilizer

During the course of biotic pharmaceutics, there is a high requirement for asepsis and heat-free source, accordingly there is also an even higher requirement for sterilize.
It is design for use in pharmaceutical, biotechnological producing industries for sterilization and treatment of rubber stoppers, fabric and instruments. The structure of this series has double layers. During working, pure steam is full of the chamber, while the jacket uses industrial steam. It has two functions of vacuum exhaust and drying.

Structure & Capability & Characteristics

  • Filter in-line sterilization.
  • Filter integrity testing.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Pressure keeping inactive system and inactive container inactive system can be fixed according to the requirements of P III, PIV lab.
  • The steam condenser is fitted in the exhaust/vacuum line to condense the steam before entering inside the vacuum pump.
  • The built-in steam generator is optional.

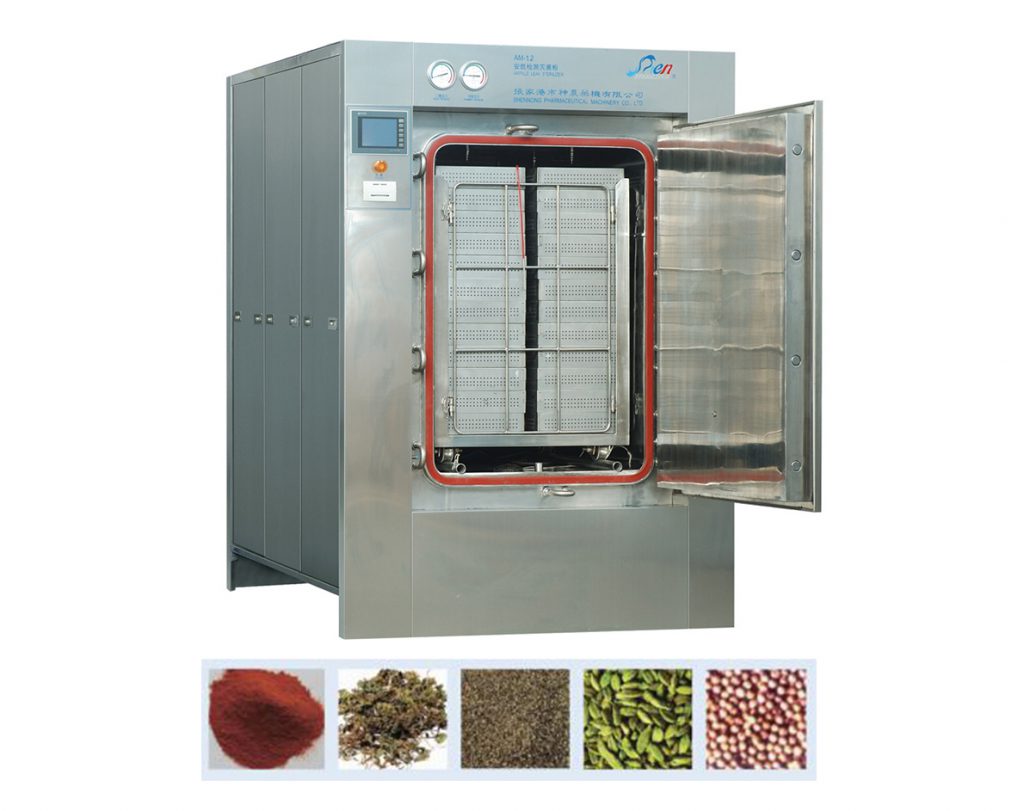

DZG Series Multifunctional Chinese Medicine Sterilizer

Generally, sterilization for Chinese herbal medicine adopts cobalts 60, ethylene oxide, alcohol, microwave and ozone etc. These methods are hard to guarantee medicine’s property, easy to have remains or lead to high cost.
After testing, steam is the most suitbale method for sterilizing herbal medicine. So we designed thi series of sterilizers, with horizontal and rectangular shape. By means of in-and-out steam heating, the space of the cabinet can be fully utilized. In the cabinet, there is a special of damp proof equippments to eliminate effectively lump phenomena of herbal powder caused by traditional steam sterization. It is applicable to Chinese Medicine Pharmaceutical Factories and Food Processing Factories.

Structure & Capability & Characteristics

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Unique damp proof device.

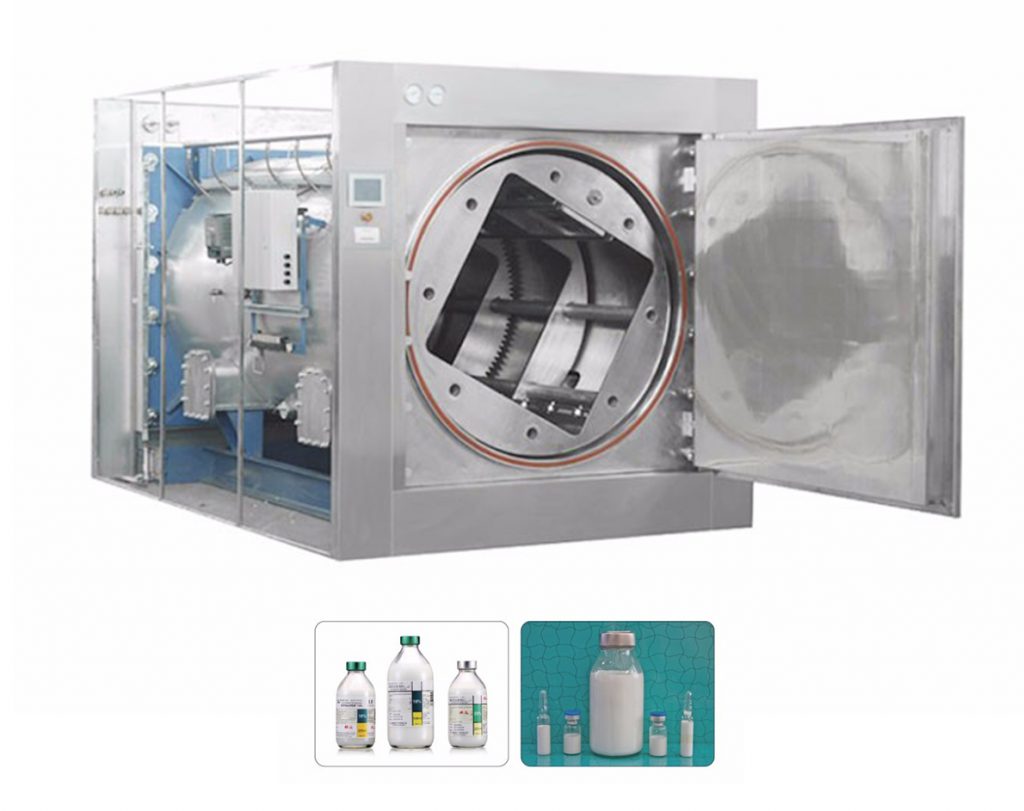

XG Series Rotatory Super Water Sterilizer

This machine is designed especially to sterilize fluids in sealed containers using a spray water system. This process has the advantage of excellent cycle time vastly reducing conventional cooling periods for fluids loads. In order to obtain a homogenous heat transmission and to avoid coagulation in certain liquid loads such as amino acids, fat emulsions etc, the sterilizer can be provided with a rotating cage assembly which is specially constructed to guide and support the loading carts whilst they are rotated in the chamber. Our precise design and exquisite processing tchnology will provide your products with the best sterilizing results.

Structure & Capability & Characteristics

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Independent temperature monitoring system.
  • Stepless variable-frequency speed control.

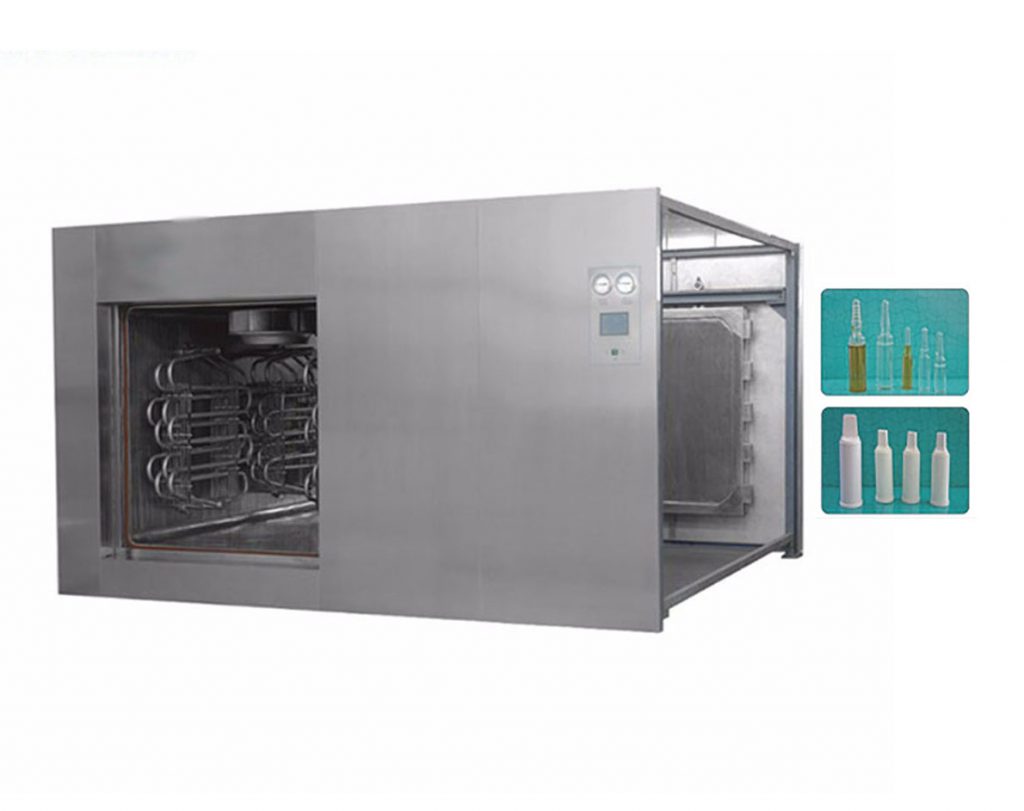

FG Series Ventilate Super Water Sterilizer

This series adopt the sterilization principle of mixed pressure by air and steam. Through one or several double-speed air blowers with high energy, the mixed gas compellingly cycles in the middle of sterilizing products. This not only provides better heat penetrability, but also guarantees the even distribution of temperature. This series is mainly designed to sterilize products whose container and package must be dried after cooling (ex. checking, labeling, packing, etc.) It is suitable for all industries to sterilize PE or PP plastic bottles and PVC or compound plastic soft package liquids.

Structure & Capability & Characteristics

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • Electric translation door, easy to operate, flexible.
  • Door is sealed up with silicon rubber, it is sealed and reliable.
  • The GMP confirmation accessis fixed on the equipment.
  • Excellent PID temperature controlling technology, accurate pressure tracking on real-time.
  • Independent temperature monitoring system.
  • Rapid cooling and drying system.

KG Rapid Cooling Sterilizer

This series is a new-generation pressure steam sterilizer, automatically controlled by program with double rectangular stainless steel doors. It can automatically draw and record the curves of temperature and time, and it also has functions of presetting, displaying and printing F values. This equipment adopts high performance PLC testing control, two operating systems (manual and automatic) and standard interfaces qualified by GMP. With the following advanced functions, lick pre-vacuum, high temperature quick sterilization quick cooling after sterilization and special anti-pressure protection device, the equipment can reliably sterilize all kinds of damp-heat ressisting products in bottles and cans.

Structure & Capability & Characteristics

  • The box is designed, produced and tested strictly according to the (Steel Pressure Vessel).
  • The GMP confirmation access is fixed on the equipment.
  • Constituted frame sterilizing cart.
  • Excellent rapid cooling device.

ZRJ Wetting Machine of Chinese Traditional Medicine

According to the excellent penetrability of vapor, the wetting machine of Chinese Traditional Medicine works in the following principle; the vapor in low temperature rapidly goes into the inner of medicinal materials which and in the vacuum and then soften them in a rapid way.
It is a new type machine for the making and processing of Chinese Traditonal Medicine, making Chinese Traditional Medicine material penetrated quickly and completely. This can not only preserve medicinal composition of medicine in most extent, but also improve the quality of medicinal slices. After vapor wet treating, the medicinal slices are in low water content and are easily dried.
This machine is designed and produced according to the criteration of pressure vessel. The door of device adopts patent technology, so it have very good seal performance in the same time can operate in convenience. The machine can be use for not only wetting Chinese Traditional Medicinie, but also by vapor sterilizing them. It has a broad application foreground i the making of Chinese Traditional Medicine materials.

Structure & Capability & Characteristics

  • The box is designed, produced and tested strictly according to the (Steel Pressure Vessel).
  • Pneumatic translational door, easy to operate, flexible.
  • The unique dove-tail inlaid design of heat-resisting silicone rubber gasket ring ensures the seal tightness of the door.
  • Reliable and stable micro-computer automatic control PLC + touch screen control, advanced function for recording, printing, and storing, etc.
  • Elegant stainless steel decorate cover.
  • The GMP confirmation access is fixed on the equipment .
  • The special wetting technics can make the medicine wetting rapidly and efficiently.

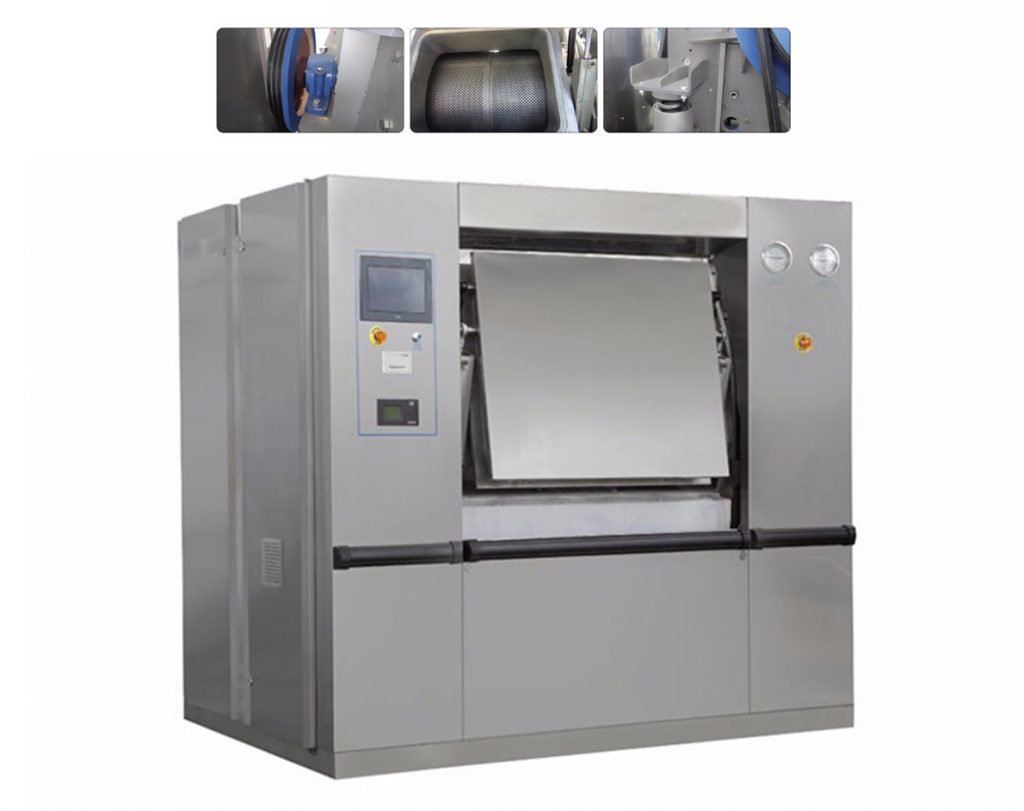

MXJ Sterilization Washing Machine

This series is a new-generation steam sterilizer which can also funtion as a washer. The whole process could be divided into the seven steps of soaking, washing coarse, exquisite wash, dehydration, sterilization, drying and cooling. Will better control of temperature, pressure and time, dressing materials are sterilized and dried quickly and effectively. This product is applicable to pharmaceutical factories and hospitals. It could be used not only as an autoclave but also as a washer.

Structure & Capability & Characteristics

  • Veesels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • Electic translational door, easy to operate, flexible.
  • Door is sealed up with silicon rubber, it is sealed and reliable.
  • The GMP confirmation access is fixed on the equipment.
  • Excellent PID temperature controlling technology, accurate pressure tracking on real-time.
  • Independent temperature monitoring system.

SYG Series Swing Sterilizer

This machine is high technology integrative product which can fully meet requirement of GMP. It is mainly apply to sterilization for suspension and emulsion. During the whole process, the machine runs stably with good seal. The loading system is propelled by the drive unit.

Our precise design and exquisite processing technology will provide your products with the best sterilizing results.

Structure & Capability & Characteristics

  • The box is designed, produced and tested strictly according to the (Steel Pressure Vessel).
  • National patent door interlock device.
  • National patent sealing technology-closed inflatable seal ring with compressed air.
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The heat insulation layer is made by alumunium silicate.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Independent temperature monitoring system.

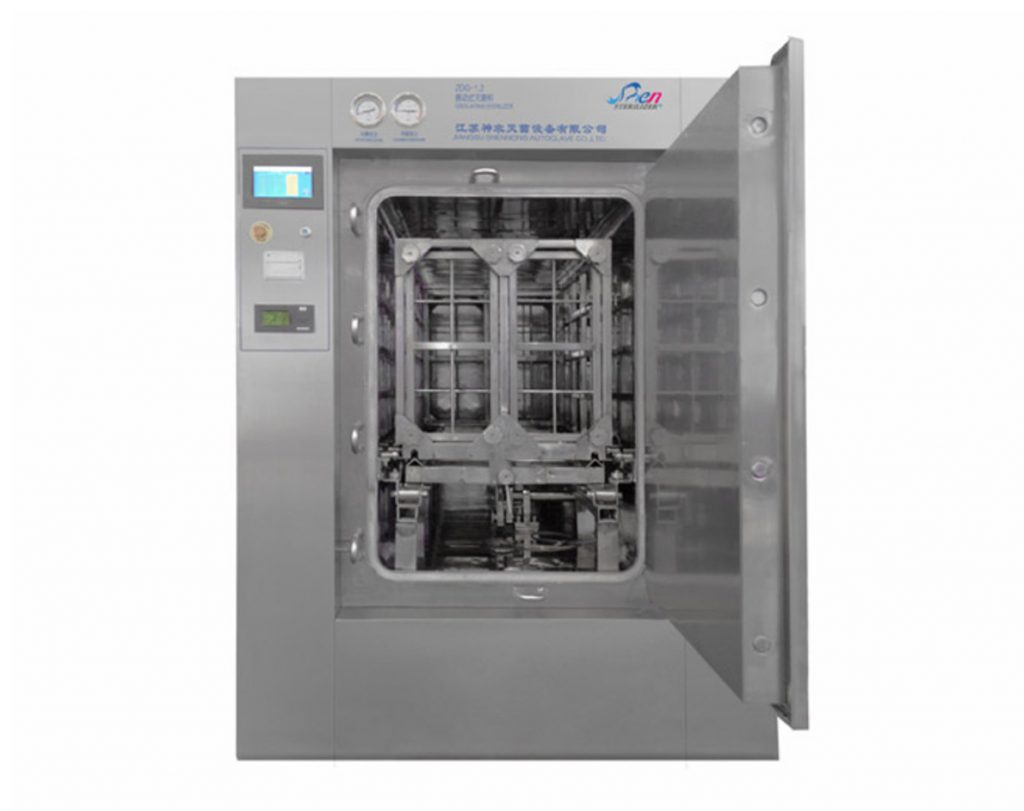

ZDG Osciliating Sterilizer

This machine is high technology integrative product, which can fully meet requirement of GMP. It is mainly apply to sterilization for suspension and emulsion. During the whole process, the machine runs stably with good seal. The loading system moves backwards and forwards at a regular speed. Our precise design and exquisite processing technology will provide your products with the best sterilizing results.

Structure & Capability & Characteristics

  • Vessels is designed to the China National Standard -GB150 (Steel Pressure Vessel)
  • National patent door interlock device.
  • National patent sealing technology- closed inflatable seal ring with compressed air.
  • Control system is integrated by PLC + HMI, advanced function for recording, printing and storing.
  • The heat insulation layer is made by aluminium silicate.
  • The GMP validation port is provided for insertion of 16 temperature sensors for validation.
  • Independent temperature monitoring system.
  • Stepless variable-frequency speed control.

QXJ Series Multifunctional Washing Sterilizer

Multifunctionla Washer Sterilizer adopts PLC control system and human-machine interface, and full automatioc control carried out on the whole process. It is easy to operate. The machine is suitable for the instruments washing and sterilizing in pharmaceutical factory, biological search institute and animal laboratory etc.

Structure & Capability & Characteristics

  • Reliable and stable micro-computer automatic control PLC + touch screen control, advanced function for recording, printing  and storing, etc.
  • Pneumatic translational door, easy to operate flexible.
  • Elegant stainless steel decorate cover.

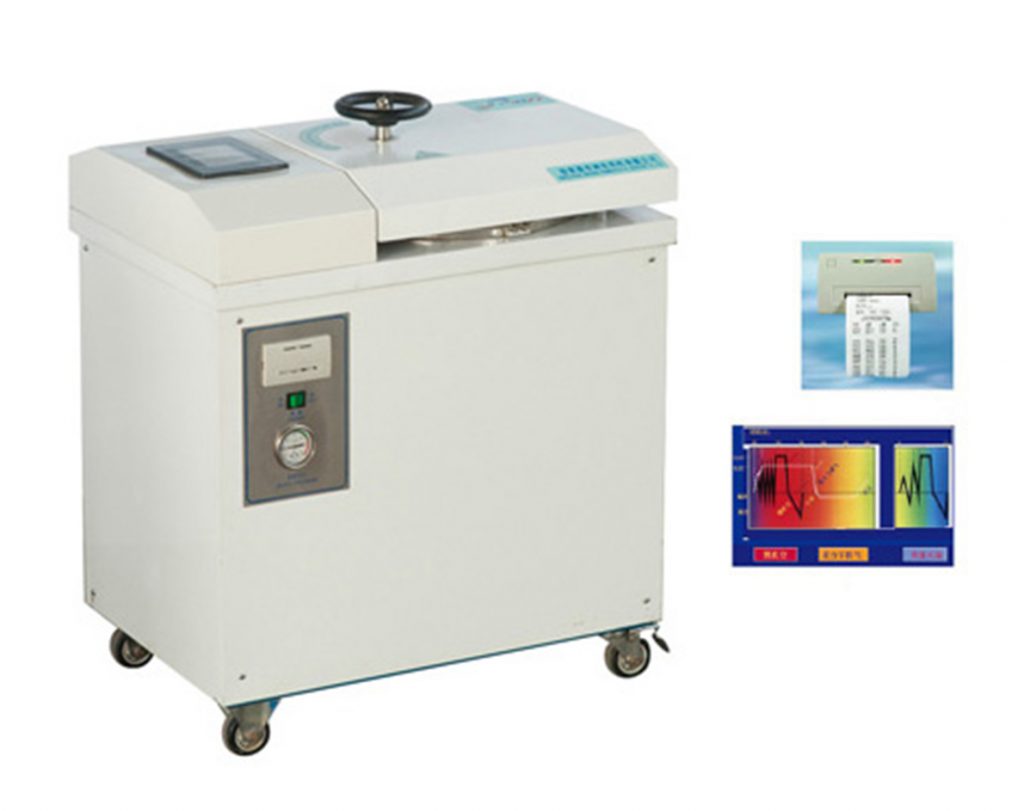

LQ-400 Vertical Pressure Steam Sterilizer

Vertical Pressure Steam Sterilizer sis electric heating and automatic-control pressure type. It adopts PLC + HMI automatic program control. Automatic temperature recording and printing, vacuum drying are realizable. With advantages of reliable sterilizing results, convenient operation, power saving, low price, high quality, etc. It is an ideal instrument for medical and research and units to sterilize operation equipment, dressings, utensils culture medium and so on.

TQ-280 Desk-type Pressure Steam Sterilizer

TQ-800 desk-type autoclave is a small disinfection equipment with reliable safety system. It adopts PLC + HMI automatic control. It has the function of automatic temperature recording, printing, vacuum drying. It is designed for a disinfection of surgical apparatus, dental apparatue, medical stuff, medical liquid, medical glass, syringe as well as food which are subject to high pressure and steam. It is suitable for disinfection and sterilization in hospital and clinics, scientific research institutions, especially in operation room that requires quick supply of sterile articles.

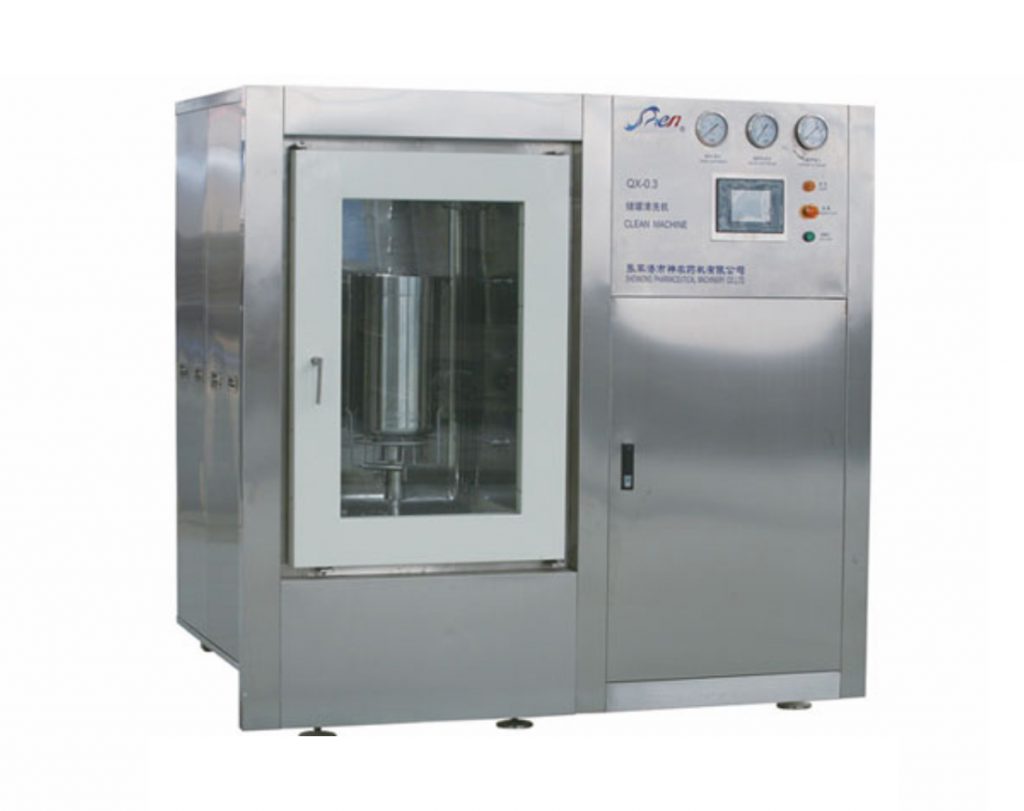

QX Series Clean Machine

Clean Machine adopts PLC control system and human-machine interface, and full automatic control carried out on the whole process. It is easy to operate. The machine is widely used in the pharmaceutical factory, cosmetic and food industries two wash tanks.

Structure & Capability & Characteristics

  • Reliable and stable micro-computer automatic control PLC + touch screen control.
  • Elegant stainless steel decorate cover.

PW Series Washing Sterilizer

Washing sterilizer adopts PLC control system and human-machine interface, and full automatic control carried out on the whole process. It is easy to operate. The machine is suitable for the drum, cage washing and sterilizing in pharmaceutical factory, biological search institute and animal laboratory etc.

Structure & Capability & Characteristics

  • The box is designed, produced and tested strictly according to the (Steel Pressure Vessel).
  • National patent door interlock.
  • National patent sealing technology of inner gas.
  • Reliable and stable micro-computer automatic control PLC + touch screen control, advanced function for recording, printing and storing, etc.
  • The GMP confirmation access is fixed on the equipment.

YGC Series Sterilizing Transferring Cabin

Sterilizing transferring cabin adopts PLC control system and human-machine interface. The built-in electric heating steam generating plant is installed. The door is completely sealed and the whole sterilizing process is full automatic control. It is widely used in the pharmaceutical factory, hospital and biological laboratory, etc.

RABS (Restricted Access Barrier System)

  • Increase of sterile safety.
  • Increase of product safety.
  • Increase of labour safety.
  • Reduce need for special clean room clothing.
  • Reduced need for raw costs and expansion costs.
  • Reduction of clean room requirements.
  • Reduce need for ventilation systems.
  • Reduced need for expansion quality of the manufacturing surroundings.
  • Reduced need for electric energy.
